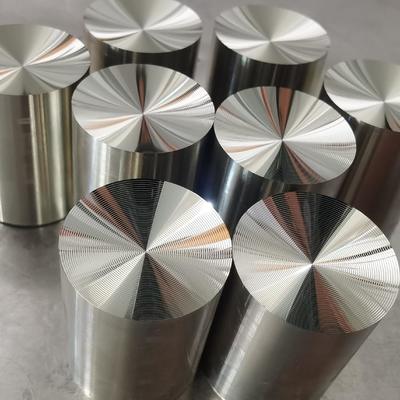

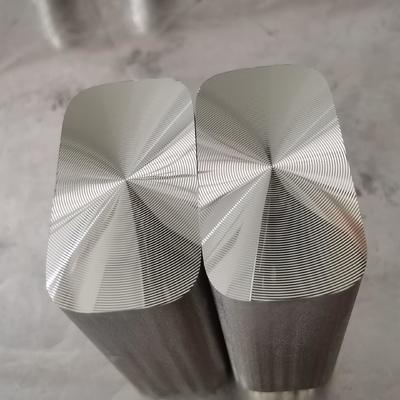

Precision Core Pins Electroforming Mold For High Repeatability Metal Parts

Large Image : Precision Core Pins Electroforming Mold For High Repeatability Metal Parts

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-107

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	200 pcs/week

Contact Now Chat Now

Precision Core Pins Electroforming Mold For High Repeatability Metal Parts

Description

Product Name:	Mold Core Pin	Highlight:	Precision Core Pins, Core Pin Die Casting
Tolerance:	+/-0.001mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Stainless Steel, Brass, Aluminum, Tin, And Other Metal Alloys	Application:	Biomedical Industry
Highlight:	electroforming mold precision core pins , high repeatability electroforming mold , metal precision core pins

Customized Electroforming Mold For High Repeatability In Metal Parts Production Applications

Product Specifications

Attribute	Value
Product Name	Mold Core Pin
Highlight	Precision core pins, core pin die casting
Tolerance	±0.001mm
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Stainless steel, brass, aluminum, tin, and other metal alloys
Application	Biomedical Industry

Product Overview

Our premium Electroforming mold offers a cutting-edge solution for industrial plastic molding processes, combining exceptional quality with innovative design. This versatile product can be customized with single or multiple cavities to optimize your manufacturing process, while its complete dimensional customization ensures precise specifications for any component.

Key Features

Mirror-polished surface finish for flawless end products
Constructed from high-quality materials for maximum durability
Exceptional precision level of ±0.005mm
Available in stainless steel, brass, aluminum, tin, and other metal alloys
Cost-effective solution for continuous production cycles

Applications

Electroforming molds are essential for precision metal parts production across multiple industries. Their high repeatability and accuracy make them ideal for:

Industrial plastic molding
Electronic components manufacturing
Electronics injection molding
Automotive parts production
Medical device manufacturing

Customization Options

Compatible with various materials
Fully customized dimensions
Mirror polished surface finish
Single or multiple cavity configurations
Affordable customization costs

Support & Services

Technical troubleshooting assistance
Mold design optimization guidance
Comprehensive training resources
Maintenance recommendations

Packaging & Shipping

Each Electroforming mold is carefully packaged in sturdy cardboard boxes with bubble wrap protection. We ship via reputable carriers (UPS/FedEx) with tracking information provided for all orders.

Frequently Asked Questions

What is electroforming?

Electroforming is a metal forming process that uses an electric current to deposit metal onto a conductive mold, creating a precise replica of the mold's shape.

How can I use the electroforming mold product?

Prepare a conductive mold, immerse it in an electrolyte solution, and apply an electric current to initiate the metal deposition process.

What types of metals can be used with the electroforming mold?

The mold is compatible with various metals including copper, nickel, gold, and silver, allowing for versatile material selection.

Is the electroforming process suitable for creating intricate designs?

Yes, the process excels at creating intricate and detailed designs due to its high precision and ability to faithfully replicate mold features.

Are there any safety precautions I should be aware of?

Always follow safety guidelines for handling chemicals, working with electricity, and wearing appropriate protective gear.
