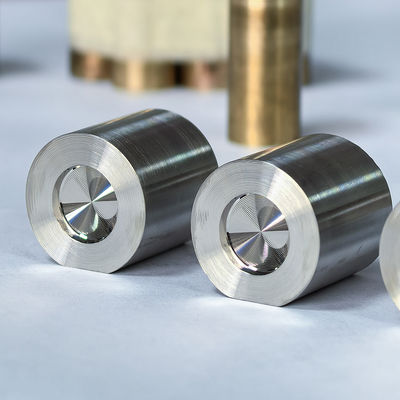

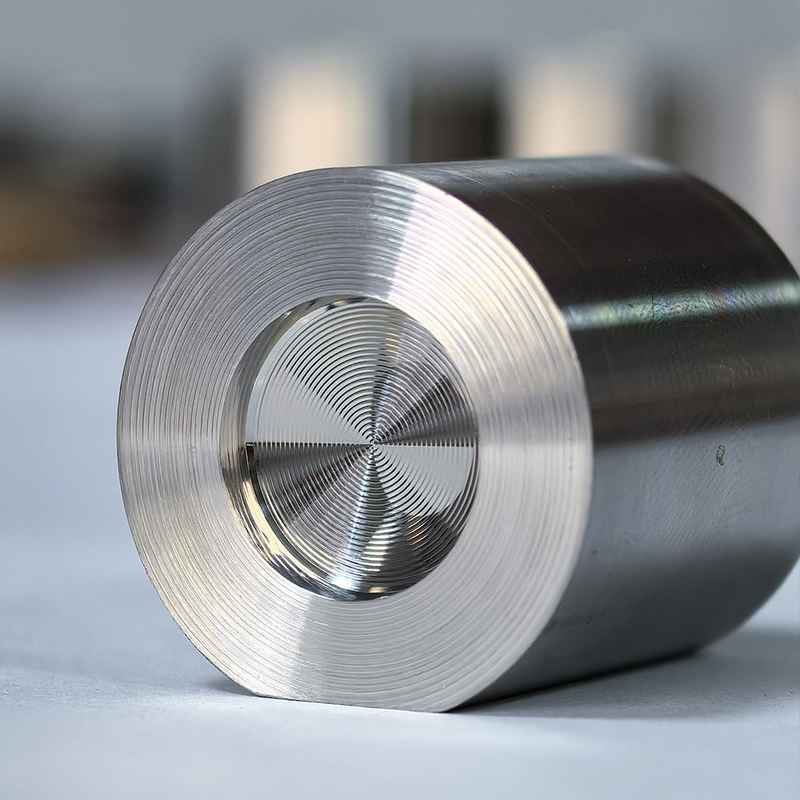

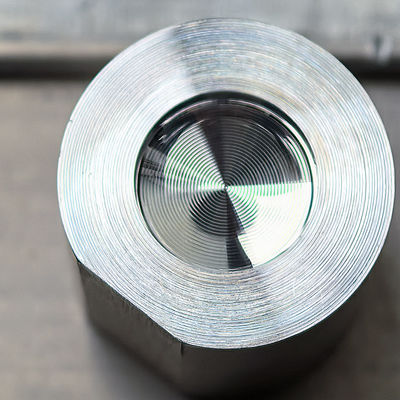

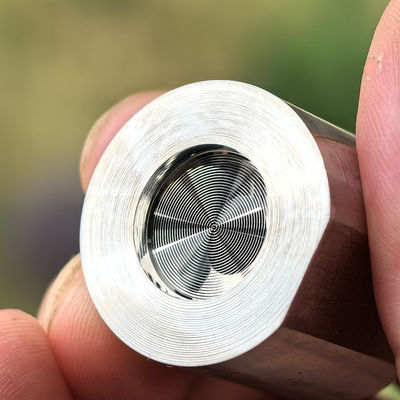

Electroforming Mold CD Pattern Knobs For 3C Electronic Parts

Large Image : Electroforming Mold CD Pattern Knobs For 3C Electronic Parts

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-301

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	800 pcs/week

Contact Now Chat Now

Electroforming Mold CD Pattern Knobs For 3C Electronic Parts

Description

Product Name:	Mold Core Pin	Tolerance:	+/-0.001mm
Application:	Electroforming Process	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Highlight:	Precision Core Pins, Core Pin Die Casting	Material:	Nickel
Heat Resistance:	High	Corrosion Resistance:	Excellent
Mold Life:	Long	Conductivity:	High
Shape:	Customized	Durability:	High
Surface Finish:	Polished	Thickness:	Depends On Design
Highlight:	CD pattern electroforming mold , customizable CD pattern knobs , electroforming mold 3C electronic parts

HeYa CD Pattern Button Electroforming Mold Manufacturing

Precision electroforming molds for CD pattern knobs in 3C electronic decorative parts with full customization capabilities.

Product Specifications

Product Name	Mold Core Pin
Tolerance	+/-0.005mm
Application	Die Casting Mould
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts

Core Technology: Nanoscale CD Pattern Replication Expert

Specialized electroforming mold solutions for 3C electronic decorative parts with micron-level precision forming of CD patterns.

Three Core Technical Advantages

Texture Precision Pinnacle: 0.05mm ultra-dense patterns (1/2 hair diameter), supporting 1000 lines/inch density
Surface Finish: Mirror-grade smoothness (Ra ≤ 0.05μm) reducing fingerprint residue by 70%
Depth Consistency: ±0.003mm error control (less than A4 paper thickness over 10cm)

Electroforming Process Breakdown

Master Mold Lithography: Laser direct writing with 5μm ultra-fine lines (smaller than bacteria)
Pulse Deposition: 1000Hz high-frequency pulse current for uniform nickel-phosphorus alloy adhesion (HV 500 hardness)
Freeze Demolding: -40℃ cryogenic separation achieves 99.8% complete texture replication

3C Electronics Full-Scene Adaptation Solutions

Application Field	Typical Products	Technical Highlights
Mobile Phone Accessories	Volume knobs/power buttons	5,000+ wear tests with zero damage, IP67 waterproof textures
Laptops	Touchpad buttons/function knobs	Anti-static treatment (10⁶-10⁹Ω resistance), no signal interference
Wearables	Watch crowns/headphone touch panels	72h acidic test without discoloration, skin-friendly texture
Smart Home	Speaker knobs/appliance control panels	Food-grade materials available, supports UV printing + laser engraving

Rapid Manufacturing Process

Master mold preparation: 5 days (laser engraving + conductive treatment)
Electroforming: 72-hour continuous deposition (0.3-1mm customizable thickness)
Full mold delivery: 12 working days (50% faster than traditional processes)

Quality Assurance: Data-Driven Standards

Rigorous Testing System

Optical inspection: Laser confocal microscope ensures ≤2% texture spacing error
Reliability tests:
- Thermal shock: -40℃~+85℃ cycling 100 times with zero cracking
- Abrasion resistance: 95% texture clarity after 1,000 cycles (500g load)

Why Choose Heya Electroforming?

Complex Texture Expertise: Exclusive dual-helix CD pattern + micro-character combination technology
Cost-Efficiency Leadership: 25% material cost savings with 0.5% defect rate (vs industry 1.2%)
Rapid Response Team: 7×24 technical support with 1-hour drawing consultation response
