Stepped Die Casting Mold Date Stamps Electroforming Processing Customization

Large Image : Stepped Die Casting Mold Date Stamps Electroforming Processing Customization

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-101

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	200 pcs/week

Contact Now Chat Now

Stepped Die Casting Mold Date Stamps Electroforming Processing Customization

Description

Product Name:	Mold Core Pin	Highlight:	Precision Core Pins, Core Pin Die Casting
Material:	Nickel	Shape:	Customized
Tolerance:	+/-0.001mm	Hardness:	43-47 HRC
Surface Finish:	Polished	Processing Method:	Electroforming Processing
Application:	Electroforming Process	Thickness:	Depends On Design
Highlight:	Stepped Die Casting Mold , Electroforming Core Pin Die Casting , Date Stamps Die Casting Mold

Stepped Die Casting Mold Date Stamps | Electroforming Processing | Non-Standard Customization

Product Overview

With 15+ years of expertise in precision mold components, we specialize in stepped die casting mold date stamps, electroforming processing, and full non-standard customization—catering to automotive, home appliance, and industrial die casting industries.

Attribute	Value
Product Name	Mold Core Pin
Highlight	Precision core pins, core pin die casting
Tolerance	±0.001mm
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Nickel,Stainless steel, brass, aluminum, tin, and other metal alloys
Application	Biomedical Industry

Core Product Parameters

Product/Service Type	Key Precision Metrics	Material Selection	Performance Indicators	Application Scenarios	Compliance Standards
Stepped Die Casting Mold Date Stamps	Dimensional tolerance: ±0.01mm Step height accuracy: ±0.005mm Surface roughness: Ra≤0.02μm	Electroformed nickel-copper alloy, hardened steel	Wear resistance: ≥100,000 die casting cycles Heat resistance: 300℃ continuous operation	Aluminum/zinc alloy die casting molds (automotive parts, kitchenware, industrial components)	ISO 9001, RoHS
Electroforming Processing for Date Stamps	Feature replication rate: ≥99.9% Thickness uniformity: ±0.003mm	High-purity nickel (99.95%), nickel-cobalt alloy	Corrosion resistance: 1000h salt spray (ISO 9227) Adhesion strength: 5B (ASTM D3359)	Precision date stamps, mold inserts, traceability components	ISO 9001

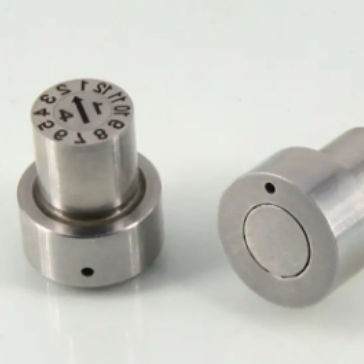

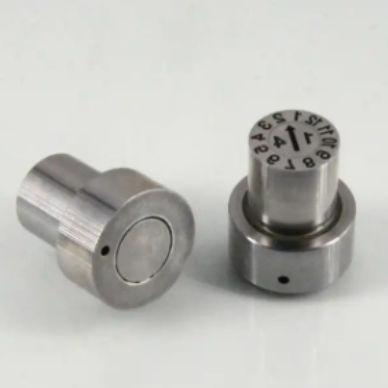

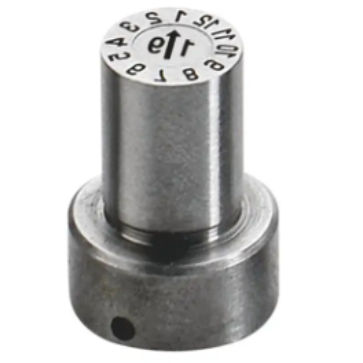

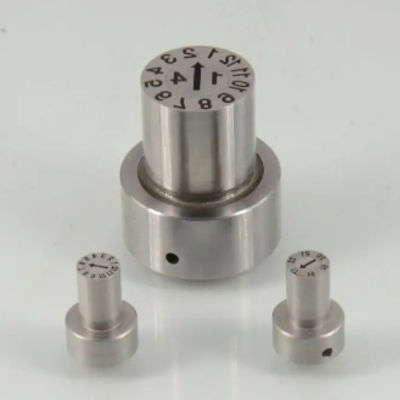

Stepped Die Casting Mold Date Stamps: Engineered for Traceability & Durability

Stepped date stamps are critical for die casting part traceability—our designs excel in "precision + ruggedness" for harsh production environments:

Stepped Structure Advantages: The multi-step design (customizable step heights: 0.5-5mm) allows clear stamping of multi-character codes on die cast parts. Using electroforming, we achieve ±0.005mm step height accuracy, ensuring each character stamps uniformly without blurring.
High-Temperature Durability: Made from electroformed nickel-copper alloy (hardness HV 450-500), our date stamps withstand 300℃ continuous contact with molten aluminum/zinc, resisting deformation or oxidation.
Compatibility with Die Casting Molds: Applicable to cold chamber and hot chamber molds. We customize stamp dimensions (10-50mm length) and mounting interfaces to integrate seamlessly with existing molds.

Electroforming Processing: The Secret to Precision Date Stamps

Electroforming is uniquely suited for date stamps, delivering unmatched precision and performance:

Micron-Level Replication: Our electroforming process replicates intricate stepped features and character details with 99.9% accuracy, ensuring legible part traceability.
Material Superiority: Electroformed nickel-copper alloy offers a balance of hardness and ductility, extending service life by 30% compared to standard options.
Performance Validation: Every electroformed date stamp undergoes rigorous testing including 1000h salt spray testing and thermal shock cycles.

Non-Standard Customization: Tailored to Your Mold Requirements

We understand die casting molds vary—our customization service adapts to your unique needs:

Full Range of Custom Options: Dimensions, characters/markings, and mounting solutions tailored to your requirements.
Streamlined Process: From client-provided drawings to sample delivery in 7-10 working days with DFM checks.
Small-to-Large Batch Support: Each unit undergoes CMM inspection (dimensional tolerance ±0.01mm) before shipment.

Our Service Advantages

Rapid Turnaround: 15-day prototype delivery for urgent mold trials; 20-day lead time for mass production.
Quality Assurance: ISO 9001 certified, with full traceability for each batch.
Technical Support: Free consultation on stamp design to balance visibility and part integrity.
