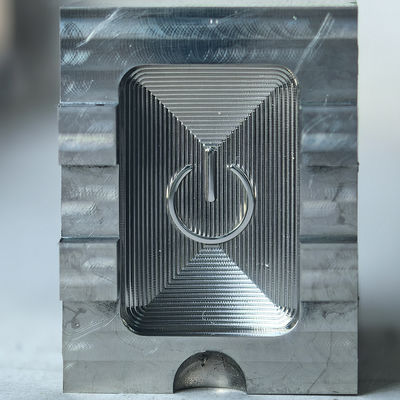

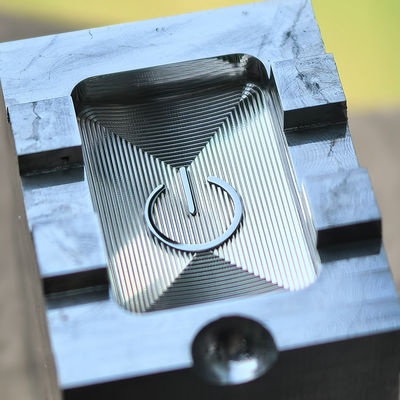

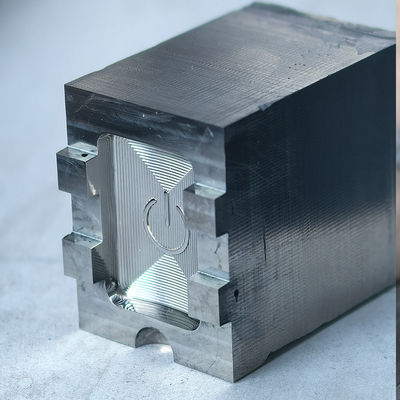

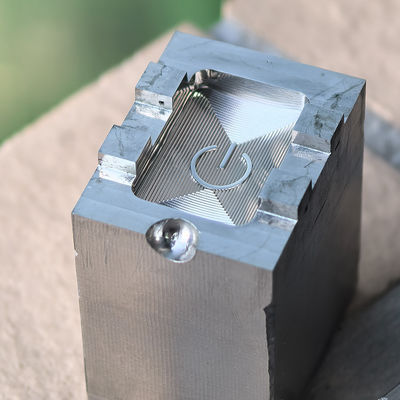

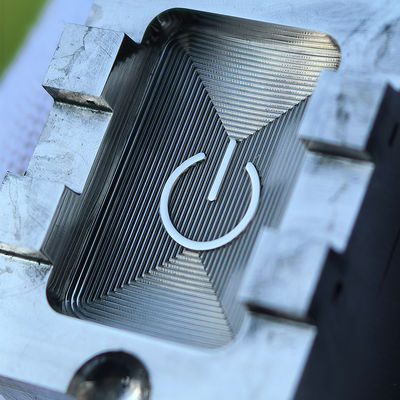

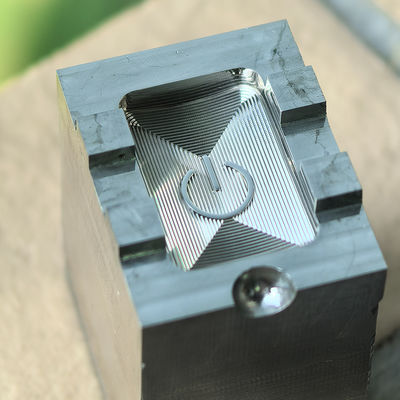

Electroformed Mold Core Manufacturer For Electronics Direct Supply ±0.003mm Accuracy Parts
As a specialized manufacturer of electroformed mold cores for the electronics industry, we directly supply high-precision mold cores to electronics component producers, consumer electronics OEMs, and micro-connector manufacturers. Our core capability lies in crafting electroformed mold cores that deliver ±0.003mm dimensional accuracy—critical for tiny, high-performance electronic parts where even micron-level deviations can cause signal failure, poor connectivity, or assembly issues.
Why Our Electroformed Mold Cores Excel for Electronics
Electronic components (e.g., micro-connectors, sensor housings, circuit board fixtures) are shrinking while growing more complex—generic mold cores can't keep up. Our electroformed solutions address three key pain points:
- Micron-Level Precision for Tiny Features: Electronic parts often include 0.1-0.5mm features (e.g., connector pinholes, sensor contact points). Our ±0.003mm tolerance ensures these features align perfectly, preventing signal loss or short circuits.
- Surface Smoothness for Electrical Performance: Our electroformed cores achieve Ra ≤0.008μm mirror finishes, ensuring consistent electrical performance and reliability.
- Complex Geometry for Miniaturization: Electroforming replicates 3D curved surfaces without the distortion of CNC machining, enabling next-gen device miniaturization.
Core Advantages for Electronic Component Production
1. ±0.003mm Accuracy: Non-Negotiable for Electronics
Our electroformed mold cores are engineered to hit tight tolerances for electronic-critical features:
- Pinhole & Contact Point Precision: 0.1mm-diameter connector pinholes maintain ±0.002mm tolerance
- Spacing Consistency: Parallel micro-grooves (0.2mm wide) have ±0.003mm spacing
- 3D Contour Accuracy: Curved sensor housings match CAD designs within ±0.005mm
2. Material & Surface Optimization for Electronics
We tailor materials and finishes to electronic performance needs:
- Conductive/Insulative Options: Nickel (conductive) or nickel-pTFE alloys (insulative)
- Corrosion Resistance: Treated with anti-oxidation coatings for 200k+ cycles
- Release Performance: Ultra-smooth surfaces reduce scrap rates by 15-20%
3. Direct Supply: Aligned with Electronics Production Cycles
As a direct manufacturer, we streamline your workflow:
- Rapid Prototyping: 5-8 days for prototype mold cores with 24-hour design feedback
- Mass Production Scalability: 12-18 day lead times matching OEM launch schedules
- Technical Collaboration: Engineers work with your R&D team to optimize designs
Applications: Electronic Parts That Depend on Precision
Our electroformed mold cores produce critical components:
- Micro-Connectors: USB-C pins, board-to-board connectors, battery terminals
- Sensor Housings: Proximity sensors, pressure sensors, camera modules
- Circuit Board Fixtures: PCB mounting brackets, heat sink clips
- Consumer Electronics Parts: Smartwatch buttons, earbud charging ports
Technical Specs Meeting Electronics Standards
| Specification |
Details |
Value for Electronics Production |
| Dimensional Tolerance |
±0.003mm (critical features); ±0.005mm (general areas) |
Ensures part functionality; prevents signal/connectivity issues |
| Surface Finish |
Ra ≤0.008μm (mirror) |
Enhances electrical performance; reduces contamination risks |
| Material Options |
Nickel (conductive), nickel-pTFE (insulative) |
Matches electronic part functionality needs |
| Feature Resolution |
Down to 0.01mm (micro-details) |
Enables production of tiny electronic features |
| Compliance |
RoHS, ISO 9001 |
Meets electronics industry environmental and quality standards |
Let's Power Your Electronic Components
Need electroformed mold cores for ±0.003mm accuracy electronic parts? Share your 3D designs (CAD/STEP) of connectors, sensors, or fixtures, and we'll provide:
- A free DFM report focusing on micro-feature optimization for electronics
- Prototype cores with full inspection data (CMM measurements, surface finish analysis)
- Cost-efficient scaling plans for mass production
