High Precision Cd Texture Keypad Molds For Remotes Auto Controls Uniform Lines Custom Sizes Components

Large Image : High Precision Cd Texture Keypad Molds For Remotes Auto Controls Uniform Lines Custom Sizes Components

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-617

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	200 pcs/week

Contact Now Chat Now

High Precision Cd Texture Keypad Molds For Remotes Auto Controls Uniform Lines Custom Sizes Components

Description

Product Name:	Mold Core Pin	Highlight:	High-Precision Uniform Textures
Tolerance:	+/-0.001mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Nickel	Application:	Biomedical Industry
Highlight:	high precision CD texture keypad molds , custom size remote control molds , auto control keypad mold components

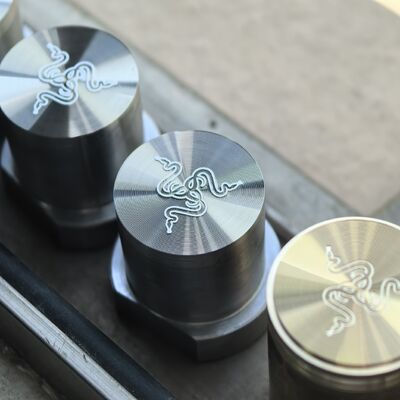

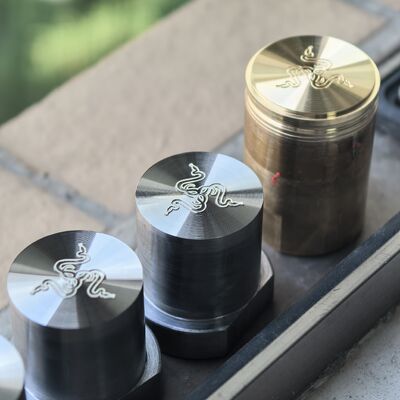

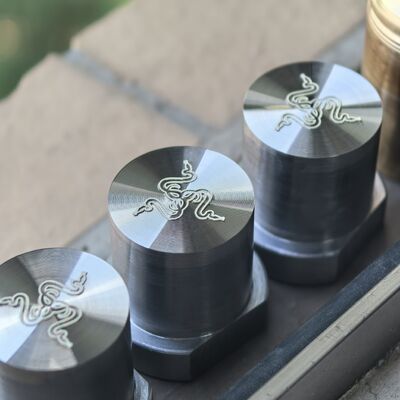

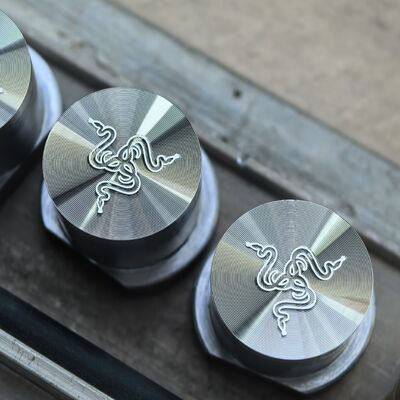

High Precision CD Texture Keypad Molds

Uniform lines for remotes & auto controls with custom sizes and mass production capabilities

Product Overview

Specialized high-precision CD texture keypad molds engineered for remote controls and automotive applications, featuring uniform lines and comprehensive customization options.

Compatibility & Applications

Ideal for dual scenarios: remotes (TV remotes, home appliance remotes, industrial control remotes) and auto controls (center console buttons, steering wheel keypads, door panel controls).

Attribute	Value
Core Feature	Uniform CD texture lines, high-precision molding, custom size adaptable, wear-resistant mold surface, smooth keypad tactile feel
Precision Tolerance	CD texture line width ±0.001mm; line spacing ±0.002mm; keypad cavity dimension ±0.003mm; concentricity ≤0.004mm
Mold Material	Nickel-Cobalt Alloy (50-55 HRC); High-Purity Nickel (99.95%); Surface Roughness Ra ≤0.005μm
CD Texture Parameters	Line width: 0.02-0.1mm; Line spacing: 0.05-0.2mm; Texture direction: Parallel/Crossed; Surface Finish Ra 0.1-0.2μm
Processing Technology	High-Precision Electroforming + Laser CD Texturing + 5-Axis CNC Cavity Finishing
Custom Size Range	Keypad diameter: 3mm-20mm; Key height: 1mm-8mm; Support round, square, oval, ergonomic custom shapes
Production Capacity	500,000+ keypads per mold; 20+ sets of molds monthly for mass production

Product Description

This high-precision CD texture keypad mold is exclusively engineered for remote and auto control keypad production, addressing core challenges of uneven CD lines, blurred texture, and size mismatch in traditional molding. Our solution combines electroforming's stress-free deposition with laser CD texturing to deliver perfectly uniform lines that enhance keypad aesthetics and tactile feel.

Crafted from wear-resistant nickel-cobalt alloy (50-55 HRC), the mold withstands high-volume resin injection (180-220℃) and repeated demolding without texture degradation. The ultra-smooth mold surface ensures CD texture is transferred 1:1 to keypads with no defects. We offer full custom sizes and shapes to meet compact design requirements for remotes and automotive interiors.

Core Advantages

Uniform CD Lines: Precision That Enhances Aesthetics & Tactile Feel

Laser CD texturing technology creates parallel/crossed lines with micron-level precision, ensuring 99.9% uniformity across the entire keypad cavity. The matte/shiny CD effect reduces glare and provides a non-slip tactile feel for easy key pressing.

Dual-Scenario Adaptation: Remotes & Auto Controls

Remotes: High-purity nickel material ensures CD texture clarity for small keypads (3-10mm) with easy-to-clean, fingerprint-resistant surface finish
Auto Controls: Nickel-cobalt alloy resists wear from frequent use and automotive interior conditions (-40℃~80℃)
Resin Compatibility: Works seamlessly with ABS, PC, TPU, and PMMA materials

Full Customization: Fit Every Keypad Design

Size & Shape: From 3mm round remote keys to 20mm ergonomic auto buttons
CD Texture: Adjust line width, spacing, and direction to match your requirements
Structure Integration: Embed key travel grooves, contact point recesses, or backlight guide channels

Mass Production Stability: Durability & Consistency

The electroformed mold's stress-free structure avoids deformation under high-temperature molding, ensuring 99.9% batch consistency. With wear-resistant nickel-cobalt alloy, the mold supports 500,000+ production cycles while reducing replacement costs by 40% compared to standard steel molds.

Application Scenarios

Category	Target Products	Recommended Solution	Core Value
Remotes	TV Remotes, Air Conditioner Remotes, Industrial Control Remotes, Smart Home Remotes	High-Purity Nickel + Parallel CD Lines (0.03mm Width, 0.1mm Spacing), Ra 0.15μm	Uniform Texture, Fingerprint-Resistant, Easy to Clean
Auto Controls	Center Console Buttons, Steering Wheel Keypads, Door Panel Window/Lock Controls, HVAC Adjustment Keys	Nickel-Cobalt Alloy + Crossed CD Lines (0.05mm Width, 0.15mm Spacing), Ra 0.2μm	Wear-Resistant, UV-Resistant, Non-Slip Tactile Feel
Other Keypads	Gaming Controller Buttons, Medical Device Keypads, Office Equipment Keypads	Custom Alloy + Tailored CD Texture, Size 5mm-18mm	Precision Molding, Brand-Specific Aesthetics, Durable for Specialized Use

Customization & Service

Customization Support

Design Collaboration: Accept 3D CAD files (STEP, IGES, STL) or physical keypad samples with DFM optimization
Prototype Service: Deliver 1-2 mold prototypes within 8-12 days with laser scanning verification
Effect Tuning: Adjust CD texture density and finish (matte/shiny) to match brand aesthetics

Service Commitment

Quality Inspection: 100% full inspection including laser confocal microscopy, CMM, and wear testing
Compliance Assurance: ISO 9001, IATF 16949, RoHS certified with full traceability documents
After-Sales Support: 24-hour technical response, 1-year mold maintenance guidance, and production line integration support
