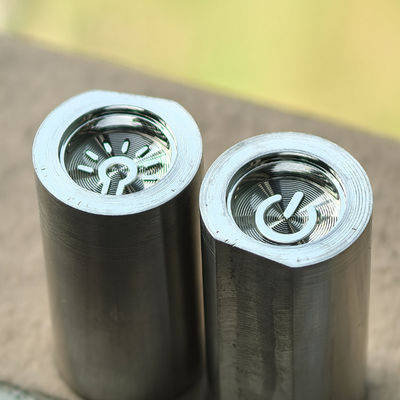

Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings

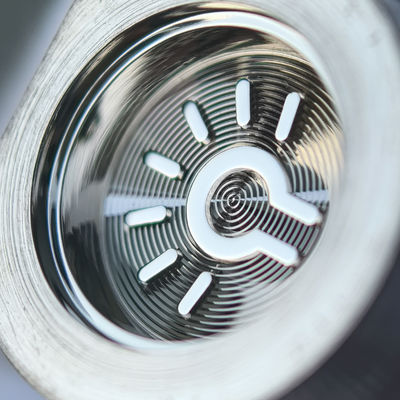

Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings

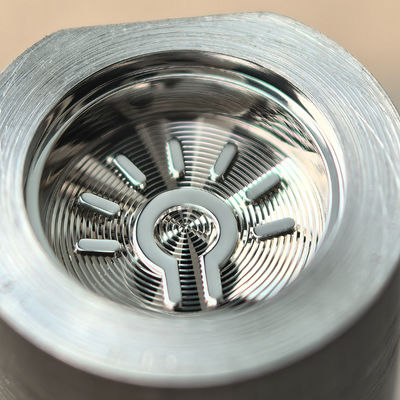

Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings

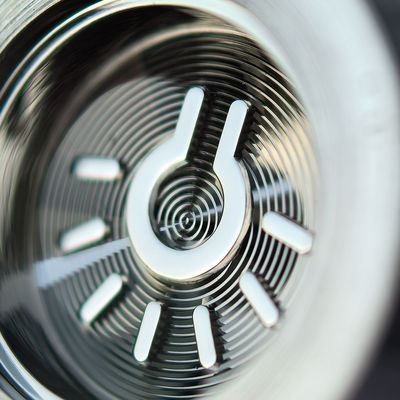

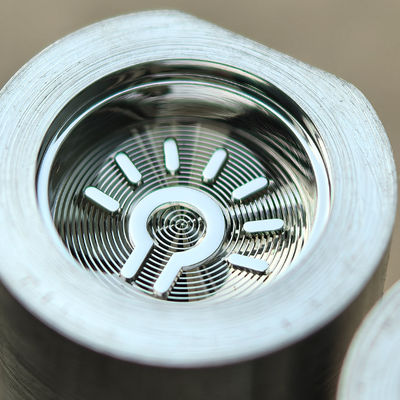

Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings

Large Image :  Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings

Product Details:
Place of Origin: Guangdong, China
Brand Name: HEYA
Certification: ISO9001
Model Number: HY-601
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil , packed in carton box
Delivery Time: 15-20 work days
Payment Terms: T/T,D/A,D/P,Western Union
Supply Ability: 200 pcs/week
Contact Now Chat Now

Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings

Description
Product Name: Mold Core Pin Highlight: High-Precision Uniform Textures
Tolerance: +/-0.001mm Hardness: 43-47 HRC
Feature: Durable Processing Method: Electroforming Processing
Material: Nickel Application: Biomedical Industry
Highlight:

precision CD pattern machining service

,

injection custom mold cores

,

metal knobs surface treatment

Precision CD Pattern Machining | Custom Mold Cores | Metal Knobs/Buttons Surface Treatment
Product Name Auto Parts Mold
Highlight High-Precision Uniform Textures
Tolerance ±0.001mm
Hardness 43-47 HRC
Feature Durable
Processing Method Electroforming Processing
Material Stainless steel, brass, aluminum, tin, and other metal alloys
Application Biomedical Industry
We specialize in high-precision surface treatment and mold manufacturing, providing comprehensive solutions for consumer electronics, automotive interiors, and luxury goods industries.
Core Business Parameters
Service Type Key Technical Specifications Material Compatibility Surface Finish Options Custom Features Typical Applications
Precision CD Pattern Machining Pattern depth: 0.03-0.1mm
Line spacing: 0.1-0.5mm
Surface roughness: Ra ≤ 0.02μm		 Aluminum, stainless steel, brass, zinc alloy Brushed, mirror, satin, PVD coating Custom patterns, logos, gradient effects Consumer electronics buttons, automotive control panels, luxury watches
Custom Mold Cores Dimensional tolerance: ±0.005mm
Hardness: HRC 52-60
Surface finish: Ra ≤ 0.01μm		 P20, 718h, H13, S136 steel Polished, textured, nitride coating Complex geometries, cooling channels, inserts Injection molds for optical components, medical devices, automotive parts
Metal Knobs/Buttons Surface Treatment Coating thickness: 3-15μm
Adhesion strength: 5B (ASTM D3359)		 Aluminum, stainless steel, copper, titanium Anodizing, electroplating, PVD, powder coating Color matching, anti-fingerprint, anti-corrosion Smart home device controls, industrial equipment interfaces, premium consumer products
Precision CD Pattern Machining: Aesthetic and Functional Excellence
Microscale Precision
Using 5-axis CNC machining and laser etching, we achieve CD patterns with line spacing as fine as 0.1mm and depth controlled within ±0.002mm, ensuring consistent optical diffraction effects for visually striking surfaces.
Material Versatility
Compatible with aluminum, stainless steel, brass, and zinc alloys, our processes maintain material integrity while adding decorative patterns. For aluminum components, we integrate anodizing post-processing to enhance corrosion resistance.
Custom Design Flexibility
Beyond standard CD patterns, we support custom geometries (concentric circles, spirals, logo integration) and gradient effects (varying pattern density for visual depth).
Custom Mold Cores: Engineered for Precision and Durability
Ultra-Precision Machining
Advanced EDM and CNC grinding produce mold cores with dimensional tolerance of ±0.005mm and surface roughness Ra ≤ 0.01μm, ensuring precise replication of microstructures.
Material Optimization
Selection of P20, 718h, H13 or S136 steel based on application needs, with heat treatment optimized for hardness HRC 52-60 and long mold life (≥500,000 cycles).
Complex Geometry Solutions
Capable of manufacturing cores with undercuts, thin walls (0.5mm thickness), and conformal cooling channels, with CFD analysis ensuring uniform temperature distribution.
Why Choose Us
  • Certified Excellence: ISO 9001:2015 and IATF 16949 certified for automotive and medical device industry standards.
  • Technical Innovation: Patented electroforming process enables micro-feature replication down to 5μm.
  • Global Collaboration: Experience serving European, North American, and Asian clients with bilingual engineering support.
Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings 0
Precision CD Pattern Machining Custom Mold Cores Metal Knobs Buttons Surface Treatment For Drawings 1
We transform client visions into precision-engineered components, combining artistry with cutting-edge manufacturing to enhance product aesthetics and functionality.
