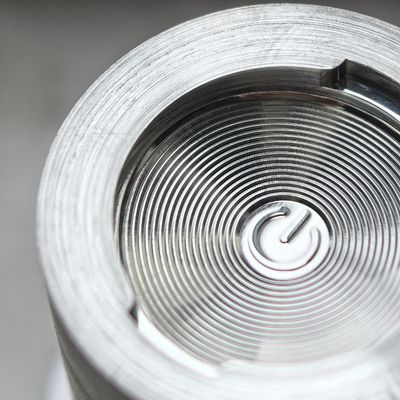

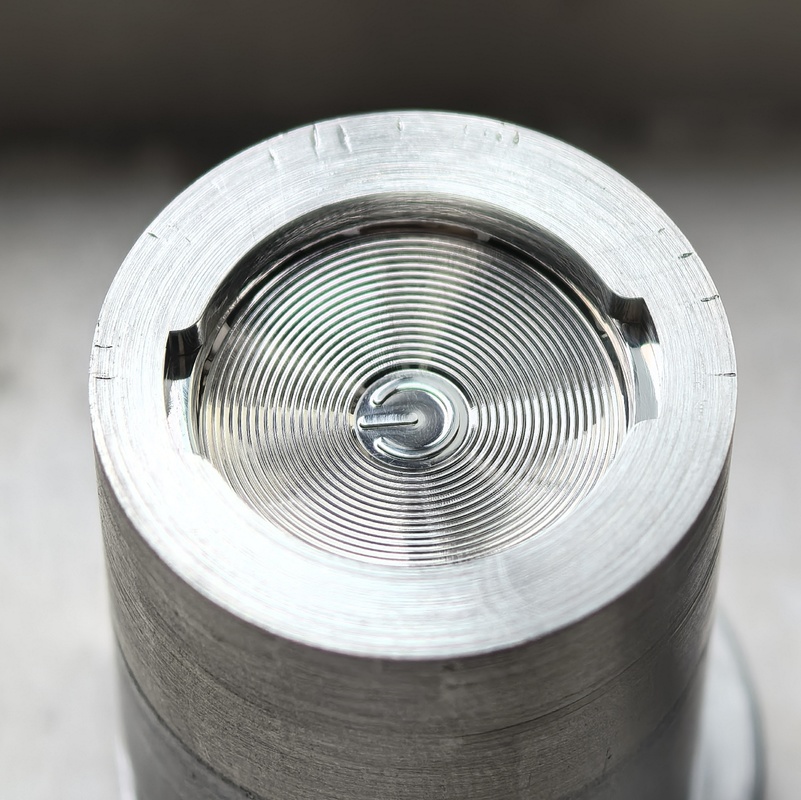

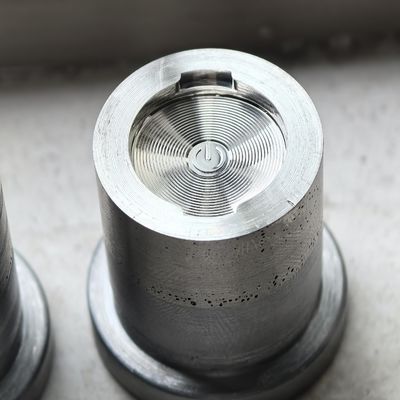

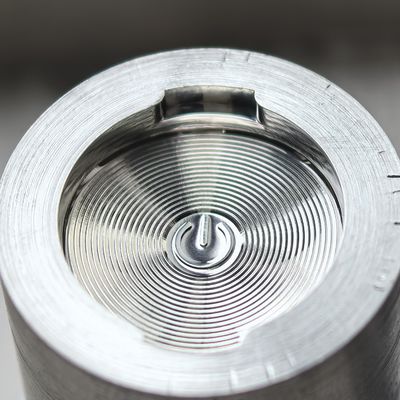

High Precision Injection Mold Electrical Appliance CD Pattern Round Knobs Electroforming

Large Image : High Precision Injection Mold Electrical Appliance CD Pattern Round Knobs Electroforming

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-202

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	800 pcs/week

Contact Now Chat Now

High Precision Injection Mold Electrical Appliance CD Pattern Round Knobs Electroforming

Description

Product Name:	Mold Core Pin	Highlight:	Precision Core Pins, Core Pin Die Casting
Tolerance:	+/-0.005mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Stainless Steel, Brass, Aluminum, Tin, And Other Metal Alloys	Application:	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Material:	Nickel	Heat Resistance:	High
Corrosion Resistance:	Excellent	Mold Life:	Long
Conductivity:	High	Shape:	Customized
Application:	Electroforming Process	Durability:	High
Surface Finish:	Polished	Tolerance:	+/-0.001mm
Thickness:	Depends On Design
Highlight:	CD pattern round knobs , high precision injection mold knobs , electroforming precision injection mold

High-Precision Electrical Appliance CD Pattern Round Knobs

Custom injection molding solutions for precision operational components in household appliances and smart electronics, combining CD pattern technology with round knob structures for both functional and aesthetic requirements.

Product Specifications

Attribute	Value
Product Name	Mold Core Pin
Highlight	Precision core pins, core pin die casting
Tolerance	±0.005mm
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Stainless steel, brass, aluminum, tin, and other metal alloys
Application	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts

Core Customization Parameters & Precision Control

Custom Size Range: Diameter 5-50mm, thickness 1-8mm, supporting specialized round knob structures (e.g., stepped, flanged). Coaxiality error ≤0.01mm ensures precise assembly.
CD Pattern Customization: Adjust spacing (0.08-0.5mm), depth (0.02-0.1mm), and density based on electrical design specifications. Supports continuous concentric circles or segmented patterns.
Mold Precision Guarantee: Cavity surface roughness Ra ≤0.03μm, ensuring 99% clarity of CD patterns on molded round knobs with no burrs or edge collapse.

Scenario-Adaptable Parameter Comparison

Application Scenarios	Typical Products	Mold Material	CD Pattern Parameters	Key Performance Indicators	Applicable Processes
Kitchen Appliances	Coffee machine, oven knobs	S136 mold steel	0.2-0.3mm / 0.05-0.08mm	Temperature resistance: -30°C to 120°C; 100,000 rotation cycles	Electroforming/CNC + Laser Engraving
Smart Home Appliances	Air purifier, floor cleaner buttons	Etched steel + epoxy resin	0.15-0.25mm / 0.03-0.06mm	Light transmittance ≥92%; compatible with two-shot injection	Etching-Filling
Commercial Electrical Equipment	Medical device knobs, industrial controllers	Cemented carbide (WC-Co)	0.08-0.2mm / 0.05-0.1mm	Wear resistance ≥500,000 cycles; chemical resistance	Electroforming

Scenario-Specific Custom Solutions

Kitchen Appliances

For high-temperature and oil-contaminated environments, we use S136 corrosion-resistant mirror steel molds. A CD pattern spacing of 0.2-0.3mm ensures anti-slip operation while facilitating daily cleaning. Molded knobs pass 100,000 rotation tests (5N load) with 98% CD pattern retention.

Smart Home Appliances

Combining etching-filling technology, mold surfaces feature CD pattern grooves (0.15-0.25mm spacing) filled with high-transparency epoxy resin, enabling knobs to achieve "matte metallic finish when powered off + glowing CD patterns when powered on."

Commercial Electrical Equipment

To withstand frequent operation and harsh environments, cemented carbide (WC-Co) molds are used. A CD pattern depth of 0.05-0.1mm enhances wear resistance, allowing knobs to endure 500,000+ presses with no significant pattern wear.

Advantages of Our Custom Services

End-to-End Custom Response: Deliverable from 3D drawing analysis to mold trial within 7 business days, supporting small-batch trials (0-20 units) and mass production scaling.
Flexible Process Matching: Customize optimal process combinations based on production volume, budget, and performance needs, reducing trial-and-error costs by 30%.
Lifecycle Support: Provide mold maintenance manuals and injection parameter guidance to ensure ≥99.5% consistency of CD patterns during mass production.
