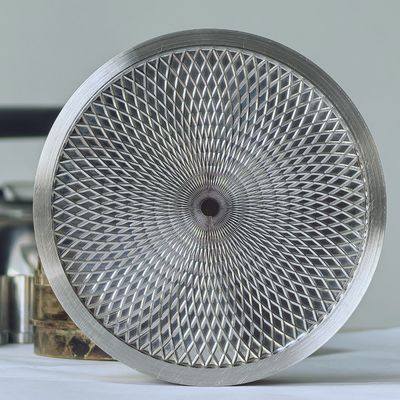

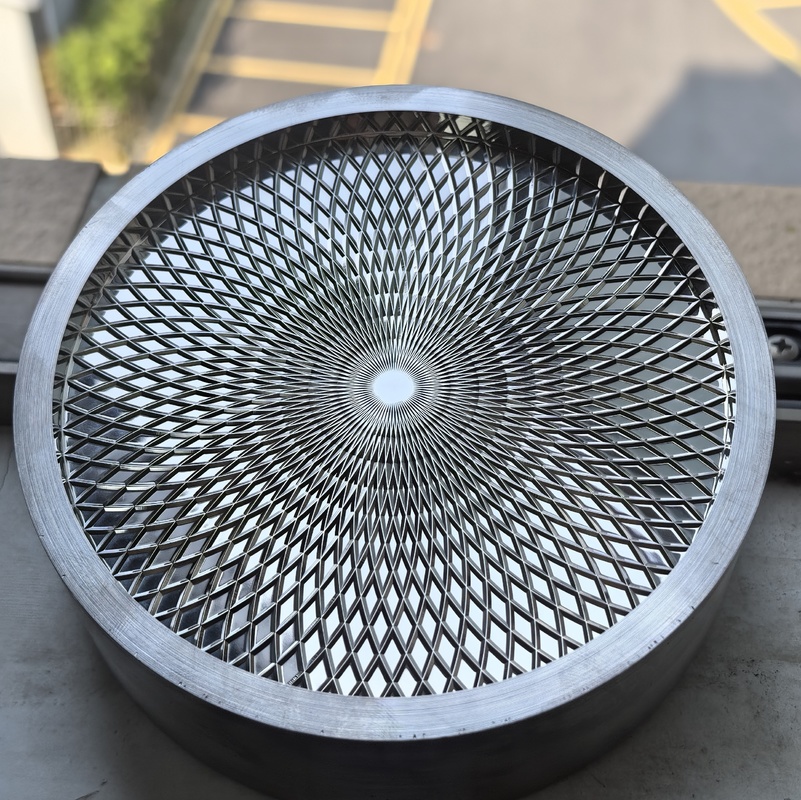

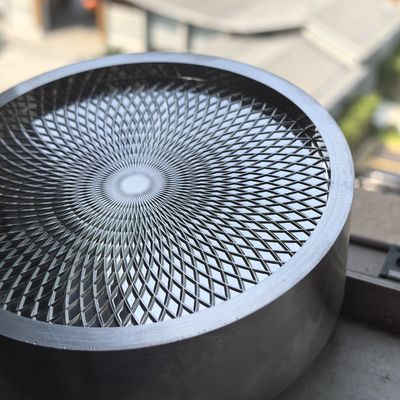

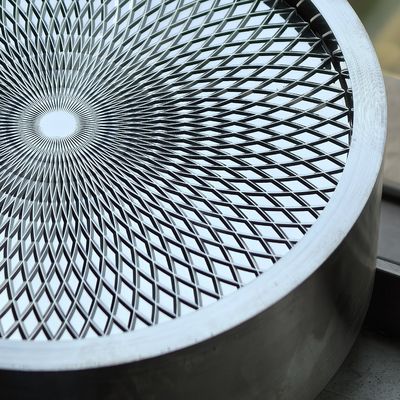

Medium Texture Contrast Diamond Texture Mold 43-47 HRC

Large Image : Medium Texture Contrast Diamond Texture Mold 43-47 HRC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-203

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	800 pcs/week

Contact Now Chat Now

Medium Texture Contrast Diamond Texture Mold 43-47 HRC

Description

Product Name:	Mold Core Pin	Highlight:	Precision Core Pins, Core Pin Die Casting
Tolerance:	+/-0.005mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Stainless Steel, Brass, Aluminum, Tin, And Other Metal Alloys	Application:	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Material:	Nickel	Heat Resistance:	High
Corrosion Resistance:	Excellent	Mold Life:	Long
Conductivity:	High	Shape:	Customized
Application:	Electroforming Process	Durability:	High
Surface Finish:	Polished	Tolerance:	+/-0.001mm
Thickness:	Depends On Design
Highlight:	medium texture contrast mold , diamond texture mold , low relief surface textures

Medium Texture Contrast and Diamond Texture Type Mold Surface Textures featuring Low Texture Relief

Product Specifications

Attribute	Value
Product Name	Mold Core Pin
Highlight	Precision core pins, core pin die casting
Tolerance	+/-0.005mm
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Stainless steel, brass, aluminum, tin, and other metal alloys
Application	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts

Core Parameters at a Glance

Key Feature	Specifications	Industry Relevance
Medium Texture Contrast	30-50% light reflection variance	Balances visibility and subtlety for consumer/automotive aesthetics
Diamond Texture Type	Size: 0.5-3mm diameter; 60°/120° vertices	Enhances grip and brand recognition; scalable to part size
Low Texture Relief	5-20μm peak-to-valley height	Reduces wear; ensures uniform molding and easy cleaning

Core Advantages

1. Medium Texture Contrast: Balanced Visual & Tactile Appeal

Our medium contrast textures strike the perfect balance between subtlety and definition, avoiding overly bold or faint patterns.

Controlled Contrast Range: Texture contrast is optimized to 30-50% (measured via light reflection variance), creating a visually engaging yet understated finish.
Light Diffusion Balance: Minimizes glare while retaining enough definition to highlight the diamond pattern.
Aesthetic Versatility: Works seamlessly with both matte and semi-gloss base materials.

2. Diamond Texture Type: Timeless Pattern with Functional Benefits

The diamond-patterned texture adds both visual sophistication and practical functionality.

Precision Diamond Geometry: Uniform diamond motifs with controlled spacing (0.1-0.5mm) and angular consistency (60°/120° vertices).
Scalable Detail: Diamond size customizable from 0.5mm to 3mm in diameter.
Pattern Continuity: Advanced machining ensures diamond patterns flow seamlessly across curved or 3D mold surfaces.

3. Low Texture Relief: Durability & Uniform Replication

With minimal height variation, low texture relief ensures long-term performance and consistent part quality.

Relief Height Control: Texture relief (peak-to-valley height) is limited to 5-20μm, reducing wear on both mold and molded parts.
Reduced Post-Processing: Minimizes burrs or uneven edges in molded parts, cutting the need for secondary finishing.
Mold Longevity: Extends tool life to ≥500,000 cycles without pattern degradation.

Application Scenarios by Industry

Industry	Key Applications	Core Value
Automotive	Interior handles, console panels, trim	Enhanced grip + premium brand aesthetics
Consumer Electronics	Smartphone back covers, audio enclosures	Tactile comfort + visual depth
Luxury Goods	Cosmetic packaging, appliance knobs	Timeless diamond pattern for upscale appeal
Industrial Equipment	Control panel buttons, tool handles	Durable grip + professional appearance

Customization & Technical Excellence

Material Compatibility: Optimized for mold materials including S136 (corrosion-resistant), NAK80 (pre-hardened), and electroformed nickel.
Process Flexibility: Achieved via laser engraving, chemical etching, or electroforming.
Design Collaboration: Our engineers refine diamond pattern density, contrast, and relief height to align with your product's needs.

Quality & Service Commitment

Precision Validation: Each mold surface undergoes 3D optical scanning (resolution 0.1μm).
Rapid Turnaround: Custom texture samples in 7-10 days; full mold surface finishing completed in 15-20 days.
Lifecycle Support: Maintenance guidelines to preserve texture integrity over 500,000+ molding cycles.

Whether you need a balanced visual finish, a functional diamond pattern, or low-relief durability, our mold surface textures deliver the precision, consistency, and customization your products demand—elevating both aesthetics and performance.
