Sharp Texture Sharpness Mold Surface Finishes Small Texture Size For Superior Texture Replication

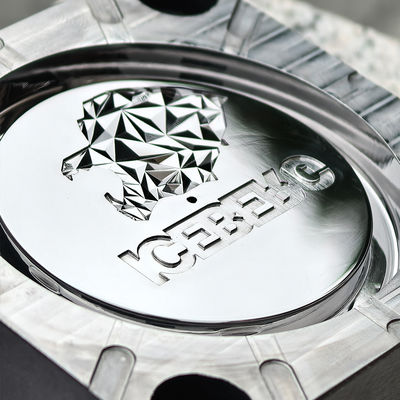

Large Image : Sharp Texture Sharpness Mold Surface Finishes Small Texture Size For Superior Texture Replication

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-208

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	800 pcs/week

Contact Now Chat Now

Sharp Texture Sharpness Mold Surface Finishes Small Texture Size For Superior Texture Replication

Description

Product Name:	Mold Core Pin	Highlight:	Precision Core Pins, Core Pin Die Casting
Tolerance:	+/-0.005mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Stainless Steel, Brass, Aluminum, Tin, And Other Metal Alloys	Application:	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Material:	Nickel	Heat Resistance:	High
Corrosion Resistance:	Excellent	Mold Life:	Long
Conductivity:	High	Shape:	Customized
Application:	Electroforming Process	Durability:	High
Surface Finish:	Polished	Tolerance:	+/-0.001mm
Thickness:	Depends On Design
Highlight:	sharp texture mold surface finishes , small texture size mold , superior texture replication molds

Sharp Texture Sharpness Mold Surface Finishes Small Texture Size For Superior Texture Replication

Product Attributes

Attribute	Value
Product Name	Mold Core Pin
Highlight	Precision core pins, core pin die casting
Tolerance	+/-0.005mm
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Stainless steel, brass, aluminum, tin, and other metal alloys
Application	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts

Sharp Texture Sharpness Mold Surface Finishes | Small Texture Size for Superior Texture Replication

Engineered for extreme precision in texture definition, our mold surface finishes combine sharp texture sharpness, small texture sizing, and superior replication capabilities—delivering crisp, consistent patterns for high-precision molded parts. Designed to meet the demands of industries requiring microscopic detail clarity and uniform texture reproduction, these finishes ensure every molded piece mirrors the master design with exceptional fidelity, making them ideal for consumer electronics, medical devices, and precision engineering applications.

Core Specifications at a Glance

Key Feature	Technical Specifications	Performance Impact
Sharp Texture Sharpness	Edge definition: ≤0.5μm blur; Pattern clarity ≥99.9%	Ensures crisp, distortion-free texture edges; enhances detail visibility
Small Texture Size	Texture dimensions: 3-30μm (customizable)	Supports micro-patterns; ideal for compact, high-detail components
Surface Finish	Ra ≤0.008μm; Peak-to-valley ≤0.03μm	Enables smooth, burr-free texture replication; reduces post-processing
Replication Fidelity	Feature replication rate: ≥99.8%	Guarantees consistent texture accuracy across all molded parts
Durability	Withstands ≥900,000 molding cycles	Maintains sharpness and replication quality in high-volume production

Core Advantages: Sharpness, Size & Replication Excellence

1. Sharp Texture Sharpness: Crisp Edges for Defined Details

Our finishes excel in preserving texture sharpness, ensuring edges and patterns remain crisp and distortion-free:

Micro-Edge Precision: Texture edges achieve ≤0.5μm blur with 99.9% pattern clarity, making them ideal for intricate designs like micro-ribs (for structural support), sensor grooves (for electronics), or branding micro-logos (for anti-counterfeiting).
Distortion Resistance: Advanced machining (laser micro-engraving + precision polishing) prevents edge rounding or smearing, even in complex 3D textures.
Aesthetic & Functional Clarity: Sharp textures enhance visual contrast, making patterns more recognizable while maintaining functional precision.

2. Small Texture Size: Micro-Detail Capability for Compact Parts

Small texture sizing enables replication of tiny, high-value details in space-constrained components:

Micro-Pattern Versatility: Texture dimensions range from 3μm to 30μm (adjustable in 1μm increments), supporting features like 5μm-wide fluid channels or 20μm-linear ridges.
Uniform Scaling: Maintains consistent spacing and sharpness across both micro-components and larger surfaces.
Material Efficiency: Minimizes material displacement during molding, reducing stress on thin-walled parts.

3. Superior Texture Replication: Consistent Quality Across Batches

Our finishes guarantee exceptional replication fidelity, ensuring every molded part matches the master design:

Near-Perfect Replication: With a feature replication rate of ≥99.8%, textures are reproduced identically across 100 to 1,000,000+ parts.
Material Adaptability: Optimized for diverse plastics (ABS, PC, PMMA, PEEK) and molding processes.
Reduced Scrap Rates: Superior replication minimizes defects, cutting scrap rates to <0.1%.

Application Scenarios by Industry

Industry	Key Applications	Value Delivered
Consumer Electronics	Smartphone camera rings, sensor covers, micro-buttons	Sharp micro-textures + small sizing for premium, detailed designs
Medical Devices	Diagnostic chip channels, surgical tool grips	Crisp texture edges + consistent replication for regulatory compliance
Precision Engineering	Optical component housings, micro-gear molds	Small textures + sharpness for functional precision
Luxury Goods	Watch dial details, cosmetic packaging micro-patterns	Superior replication + clarity for brand differentiation

Customization & Technical Expertise

Tailored to Your Design: Our team collaborates to refine texture sharpness, size, and pattern.
Advanced Manufacturing: Achieved via ultra-precision laser engraving and nano-polishing.
Material Compatibility: Optimized for premium mold steels (S136, H13) and electroformed nickel.

Quality & Service Commitment

Precision Validation: Each mold undergoes 3D confocal microscopy (resolution 0.01μm).
Certified Performance: Compliant with ISO 9001 quality standards.
Lifecycle Support: Maintenance protocols to extend mold life beyond 900,000 cycles.

For molds requiring sharp, small-scale textures with unrivaled replication quality, our finishes deliver the precision, consistency, and durability your high-detail products demand—elevating both functional performance and brand quality perception.
