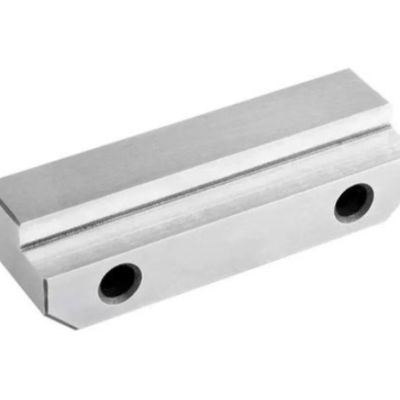

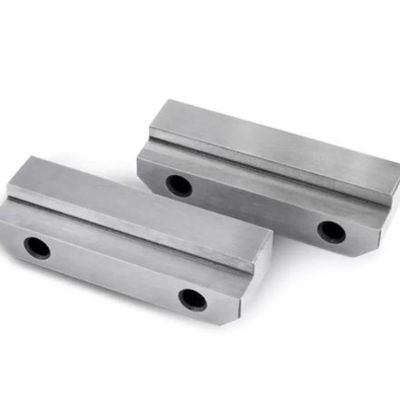

Custom Injection Mold Cavity Cores Electroforming Processing For Plastic Parts

Large Image : Custom Injection Mold Cavity Cores Electroforming Processing For Plastic Parts

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-601

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	200 pcs/week

Contact Now Chat Now

Custom Injection Mold Cavity Cores Electroforming Processing For Plastic Parts

Description

Product Name:	Injection Mold Cavity Cores	Highlight:	High-Precision Uniform Textures
Tolerance:	+/-0.005mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Stainless Steel, Brass, Aluminum, Tin, And Other Metal Alloys	Application:	Biomedical Industry
Material:	Nickel
Highlight:	Injection Mold Cavity Cores , Custom Injection Mold Cavity , Electroforming Injection Mold Cavity

Heya Precision: Custom Injection Mold Cavity Cores for Plastic Parts – Tailored to Client’s 2D/3D Drawings, High-Tolerance (±0.005mm) & Compatible with PC/ABS Resins

Designed for plastic part manufacturers (automotive, electronics, consumer goods) needing fully customized mold components, our cavity cores are 100% aligned with your 2D/3D drawings (CAD, STEP, IGES formats) to fit seamlessly into your existing injection mold systems. We prioritize precision and resin compatibility to eliminate production delays—critical for high-volume plastic parts like automotive sensor housings, electronic device casings, and consumer product enclosures.

Why Heya’s Custom Injection Mold Cavity Cores Stand Out

Plastic part manufacturers face 3 core pain points with off-the-shelf or poorly customized cavity cores:

Mismatch with client drawings leads to mold assembly issues and costly rework;
Insufficient tolerance causes inconsistent plastic part dimensions (e.g., loose fits in device casings);
Poor resin compatibility results in sticking, warping, or shortened mold life.

Heya solves these by engineering cavity cores exclusively for your drawings—combining 18+ years of precision machining experience with strict quality controls to meet even the most demanding plastic molding needs.

Core Customization Capabilities for Client-Drawn Cavity Cores

We tailor every detail to your drawings and production requirements, with flexibility to adapt to unique plastic part designs:

Customization Dimension	Key Options	Heya Advantage
Client Drawing Support	2D (PDF/DXF) & 3D (CAD/STEP/IGES) files	1:1 drawing matching; free pre-production drawing review to fix manufacturability issues
Material Selection	S136 steel (corrosion-resistant for humid environments), H13 steel (high-wear for high-volume runs)	Pre-hardened steel cuts heat-treatment time by 7 days; material certificates provided for traceability
Precision Control	±0.005mm dimensional tolerance, Ra ≤0.008μm surface finish	CNC machining with Zeiss CMM inspection (±0.0005mm accuracy) to ensure no part fit issues
PC/ABS Resin Compatibility	Optimized cavity geometry for PC (heat-resistant) & ABS (impact-resistant)	Cooling channel design tailored to PC/ABS shrinkage rates (PC: 0.5–0.7%, ABS: 0.3–0.5%) to prevent warping

Technical Specs: Built for Precision Plastic Molding

Our cavity cores meet the strict standards of high-volume injection molding, with specs that directly boost your production efficiency:

Specification	Heya Standard for Custom Cavity Cores	Impact on Your Plastic Part Production
Dimensional Tolerance	±0.005mm	Consistent plastic part sizes; no rework from misfits (e.g., electronic casing gaps)
Service Life	≥250,000 cycles (for PC/ABS molding)	Sustains high-volume runs (e.g., 100,000+ plastic parts) without cavity wear
Lead Time	12–15 days (prototype); 18–22 days (mass-production)	Faster than industry average (25+ days) to meet tight product launch timelines
Post-Production Inspection	Zeiss CMM testing + visual surface checks	100% defect-free rate before delivery; no unexpected mold failures

Quality & Compliance for Global Manufacturers

ISO 9001 Certified: Every cavity core undergoes rigorous inspection to meet international quality standards—critical for clients in automotive (IATF 16949-aligned) and electronics industries.
Material Traceability: Full documentation (mill certificates, heat-treatment records) provided for every steel batch, ensuring transparency for your supply chain audits.
Pre-Production Testing: We run 50–100 test injections with your target resin (PC/ABS) to verify cavity core performance—catching issues like resin sticking or uneven filling before mass production.

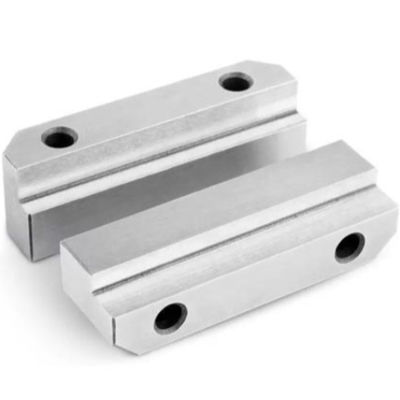

Custom Injection Mold Cavity Cores Electroforming Processing For Plastic Parts 0

Who Benefits from Our Custom Cavity Cores

Automotive Plastic Part Manufacturers: For components like sensor housings, interior trims, and under-hood plastic parts (PC/ABS compatibility ideal for heat/humidity resistance).
Electronic Device Makers: For precision casings (e.g., smartphone chargers, IoT device enclosures) where ±0.005mm tolerance ensures component alignment.
Consumer Goods Injection Molders: For high-volume products (e.g., toy parts, home appliance enclosures) needing durable, cost-effective cavity cores tailored to unique drawings.

Call to Action

Need custom cavity cores matching your 2D/3D drawings? Upload your CAD/STEP file—Heya’s engineers will provide a free DFM (Design for Manufacturability) report and detailed quote within 24 hours.

Bonus: Download our [Custom Cavity Core Spec Sheet] for tolerance charts, material comparisons, and PC/ABS molding best practices.
