Polished Surface Finish Mold Surface Textures With 0.001mm Texture Depth

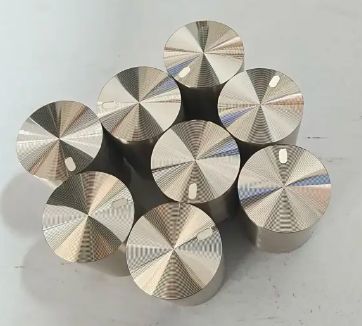

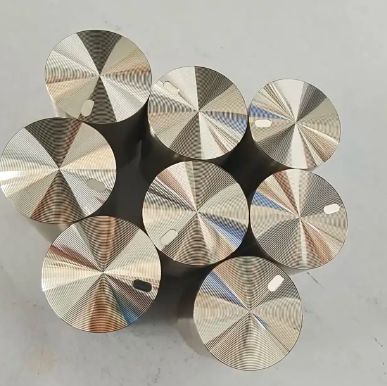

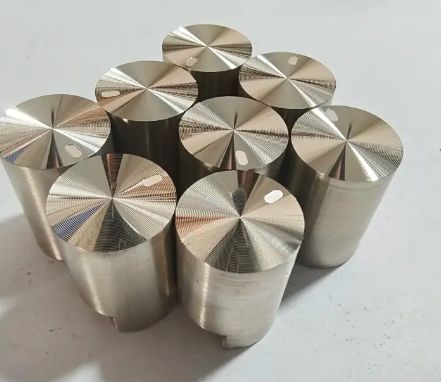

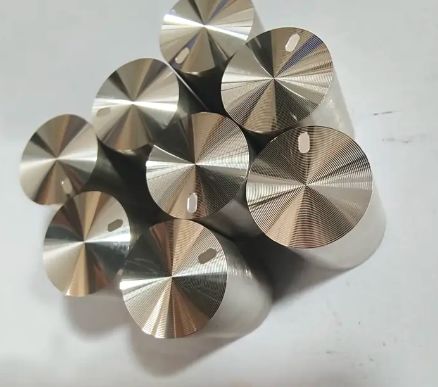

Large Image : Polished Surface Finish Mold Surface Textures With 0.001mm Texture Depth

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-209

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	800 pcs/week

Contact Now Chat Now

Polished Surface Finish Mold Surface Textures With 0.001mm Texture Depth

Description

Product Name:	Mold Core Pin	Highlight:	Precision Core Pins, Core Pin Die Casting
Tolerance:	+/-0.005mm	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Material:	Stainless Steel, Brass, Aluminum, Tin, And Other Metal Alloys	Application:	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Material:	Nickel	Heat Resistance:	High
Corrosion Resistance:	Excellent	Mold Life:	Long
Conductivity:	High	Shape:	Customized
Application:	Electroforming Process	Durability:	High
Surface Finish:	Polished	Tolerance:	+/-0.001mm
Thickness:	Depends On Design
Highlight:	polished mold surface textures , 0.001mm texture depth molds , random texture pattern molds

Polished Surface Finish Mold Surface Textures With 0.001mm Texture Depth And Random Texture Pattern

Product Specifications

Attribute	Value
Product Name	Mold Core Pin
Highlight	Precision core pins, core pin die casting
Tolerance	+/-0.005mm
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Material	Stainless steel, brass, aluminum, tin, and other metal alloys
Application	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts

Texture Specifications

Attribute	Value
Texture Depth	0.001mm (±0.0002mm tolerance)
Surface Finish	Polished; Ra ≤0.005μm; Gloss level: 90-95 GU (60° measurement)
Texture Pattern	Random (non-repeating); Feature size: 5-30μm (variable)
Material Compatibility	Mold steel (S136, NAK80), electroformed nickel
Durability	≥1,000,000 cycles (with anti-wear coating)
Key Benefits	Anti-glare, subtle grip, premium aesthetics, uniform replication

Core Advantages: Precision, Aesthetics & Functionality

0.001mm Ultra-Fine Texture Depth: Micro-Precision Control

Micron-Level Accuracy: Texture depth held to exact 0.001mm with ±0.0002mm tolerance, one of the finest achievable in industrial molding.
Material Flow Optimization: Shallow depth prevents disruption of molten resin flow, ensuring uniform filling for thin-walled parts (0.5-2mm).
Wear Resistance: Ultra-fine depth reduces friction, extending mold life to ≥1,000,000 cycles for high-volume production.

Polished Surface Finish: Mirror-Like Smoothness with Subtle Texture

Premium Gloss & Clarity: Achieves Ra ≤0.005μm surface roughness and 90-95 GU gloss for mirror-like base.
Anti-Glare Performance: Reduces glare by 30% vs. fully smooth surfaces while preserving clarity.
Easy Maintenance: Non-porous polished finish resists dirt and resin buildup, simplifying cleaning.

Random Texture Pattern: Natural Uniformity & Aesthetic Versatility

Non-Repeating Design: Random pattern (5-30μm feature size) avoids artificial look for natural, premium appearance.
Consistent Randomness: Advanced etching ensures uniform texture distribution (99.5% coverage).
Functional Benefits: Adds micro-grip while hiding minor scratches, extending product visual lifespan.

Application Scenarios by Industry

Industry	Key Applications	Value Delivered
Consumer Electronics	Smartphone back covers, tablet casings, smartwatch bezels	Anti-glare + premium feel + scratch resistance
Automotive	Interior trim panels, dashboard surfaces, steering wheel accents	Subtle grip + glare reduction + luxury aesthetics
Luxury Goods	Cosmetic packaging, high-end watch cases, jewelry boxes	Natural random texture + mirror polish for upscale branding
Medical Devices	Diagnostic equipment panels, surgical tool handles	Smooth, easy-to-clean surface + micro-grip for precision

Customization & Technical Expertise

Pattern Tuning: Adjust random feature size (5-30μm) and density to balance aesthetics and functionality.
Material Matching: Optimized for mold steels (S136, NAK80) and electroformed nickel with optional DLC coating.
Validation: Each mold undergoes 3D optical profiling (0.001μm resolution) for quality verification.

Quality & Service Commitment

Precision Assurance: Compliant with ISO 9001, with full inspection reports.
Rapid Turnaround: Prototype molds in 10-14 days; production molds in 15-20 days.
Lifecycle Support: Maintenance guidelines to preserve polish and texture integrity.

For molds requiring the perfect balance of mirror-like polish, ultra-fine texture depth, and natural random patterns, our solutions deliver the precision, aesthetics, and durability to elevate your high-end products—combining functionality with a premium, sophisticated finish.
