Custom Smart Watch Case Molds – 2D/3D Client Drawings, ±0.005mm Tolerance, Thin-Wall Compatible, 12–15 Days Tooling

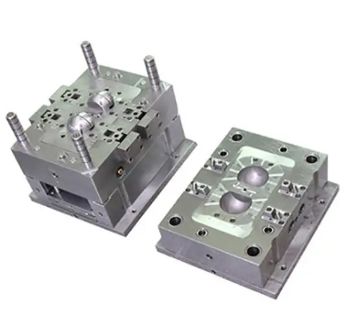

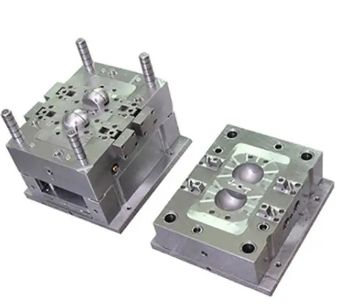

Heya Precision: Custom Smart Watch Case Molds
Engineered for smart watch OEM/ODM manufacturers, wearable tech brands, and custom wearable accessory suppliers, our custom smart watch case molds are precision-machined to 1:1 match your 2D/3D drawings (CAD, STEP, IGES, DXF). Tailored for all mainstream smart watch types—square/round/rectangular cases, sports waterproof models, and luxury slim designs—they excel at producing thin-wall structures (1.0-2.5mm thickness, common in smart watches) with ±0.005mm tolerance, and deliver 12-15 day tooling to keep up with wearable tech's fast product iteration cycles.
Why Heya's Custom Smart Watch Case Molds Stand Out
Smart watch case production has unique pain points that generic molds can't resolve—our design directly targets these to protect your product functionality and market timelines:
- Thin-Wall Deformation Ruins Fit: Smart watch cases rely on 1.0-2.5mm thin walls for lightweight wear, but standard molds cause 15%+ deformation (e.g., warped edges, uneven thickness) during injection—leading to cases that don't fit watch cores (screens, batteries) or seal poorly.
- Micro-Structure Precision Gaps: Cases need tiny, aligned features (e.g., 0.8mm-thick side buttons, 1.2mm sensor cutouts, magnetic charging port grooves). Even 0.01mm deviation breaks functionality (e.g., buttons stuck, sensors blocked).
- Slow Tooling Misses Wearable Cycles: Wearable tech launches every 3-6 months—industry-average 20+ day tooling delays mean missing seasonal windows (e.g., holiday gift peaks) or falling behind competitors.
Heya solves these with thin-wall compatibility, ±0.005mm precision, and 12-15 day tooling—turning "wearable production hurdles" into "on-time, high-fit smart watch cases."
Core Customization Capabilities for Client-Drawn Smart Watch Cases
We tailor every mold to your smart watch's unique design and thin-wall needs, focusing on details that define wearable usability:
| Customization Dimension |
Key Options |
Heya Advantage |
| 2D/3D Drawing Support |
Compatible with 2D (DXF/PDF) & 3D (CAD/STEP/SolidWorks) files; adapts to case shapes (round/square/rectangular) and micro-features (button slots, sensor holes, charging ports) |
Free pre-production DFM (Design for Manufacturability) analysis—e.g., adding localized cooling for thin-wall edges to prevent warping; 100% drawing alignment guaranteed |
| Thin-Wall Compatibility |
Optimized for 1.0-2.5mm wall thickness; uses low-pressure injection parameters; integrated conformal cooling channels (avoids hot spots) |
Eliminates thin-wall deformation—wall thickness deviation ≤0.003mm, ensuring cases fit watch cores perfectly and seal tightly (critical for waterproof models) |
| Precision Tuning for Wearables |
±0.005mm tolerance for micro-features (buttons, sensor cutouts); Ra ≤0.01μm surface finish (for matte/glossy case exteriors) |
Ensures every tiny feature works—buttons press smoothly, sensors align with watch cores, and charging ports connect reliably (no "loose fit" complaints) |
| Fast Tooling Guarantee |
12-15 day turnaround (from drawing approval to mold delivery); dedicated production teams for urgent wearable launches |
Beats industry average by 5-8 days—lets you launch new smart watch models ahead of competitors (e.g., catching Black Friday or back-to-school seasons) |
Technical Specs: Built for Wearable Tech Precision
Our molds are engineered to balance thin-wall performance and speed, with specs that directly impact your production efficiency:
| Specification |
Heya Standard for Smart Watch Case Molds |
Impact on Your Production |
| Dimensional Tolerance |
±0.005mm (micro-features/edges); ±0.008mm (non-critical areas) |
Eliminates fit-related scrap—scrap rates drop to ≤4% vs. industry average 15%+ |
| Thin-Wall Range |
1.0-2.5mm (optimized for smart watch designs); supports thinner walls (0.8mm) with custom cooling |
Works with all mainstream smart watch case thicknesses—no need to redesign cases for mold limitations |
| Tooling Lead Time |
12-15 days (includes drawing review, machining, inspection) |
Reduces time-to-market by 2-3 weeks—critical for wearable tech's fast iteration cycles |
| Resin Compatibility |
Optimized for PC (lightweight cases), ABS (impact-resistant models), TPU (flexible sports cases) |
Compatible with all wearable-grade resins—no need to invest in multiple molds for different case materials |
Quality Assurance: ISO 9001 Certified
Our entire smart watch case mold production process—from drawing review, material selection, and thin-wall-focused machining to final precision inspection—strictly complies with ISO 9001:2015 standards. This ensures:
- Consistent Thin-Wall Precision: Every mold undergoes Zeiss CMM testing (±0.0005mm accuracy) to verify ±0.005mm tolerance and uniform wall thickness.
- Traceable Processes: Full records (material certificates, machining logs, thin-wall deformation test data) are provided for your supply chain audits.
- Reliable Problem-Solving: Clear protocols for adjusting thin-wall cooling or micro-feature alignment—no delays if minor tweaks are needed.
Note: We hold ISO 9001 certification—to keep our focus on delivering cost-effective, wearable-friendly molds for smart watch brands.
Who Benefits from Our Client-Drawn Smart Watch Case Molds
- Smart Watch OEM/ODM Manufacturers: For high-volume production of standard smart watch lines (e.g., 50k+ cases/month) where thin-wall compatibility and fast tooling cut long-term costs.
- Wearable Tech Brands: For launching custom smart watches (e.g., luxury designer models, rugged outdoor watches) where 3D drawing support ensures unique shapes (e.g., curved edges) are replicated perfectly.
- Custom Accessory Suppliers: For niche smart watch cases (e.g., eco-friendly resin, limited-edition designs) where ±0.005mm precision ensures compatibility with original watch cores.
Call to Action
Need a custom mold for your smart watch case design? Upload your 2D/3D drawing (CAD/STEP)—Heya's engineers (with 3+ years of wearable tech mold experience) will provide a free DFM report (including thin-wall optimization tips) and detailed quote within 24 hours.
