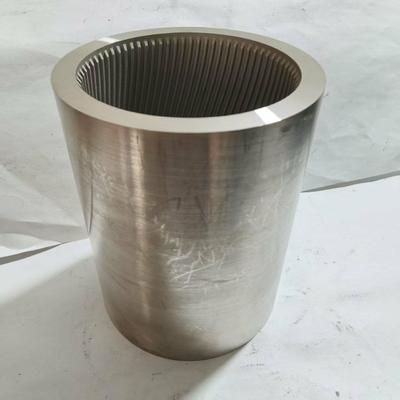

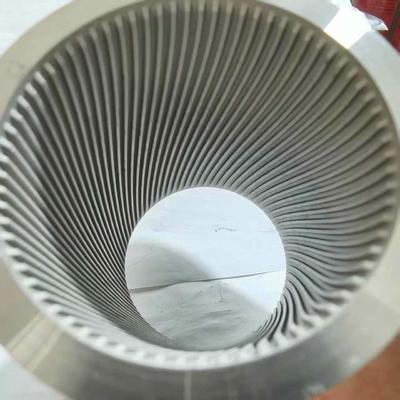

Steel Core Cavity Mold ProE Mold Design Software And LKM Mold Base

Large Image : Steel Core Cavity Mold ProE Mold Design Software And LKM Mold Base

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HEYA
Certification:	ISO9001
Model Number:	HY-305

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Coated with anticorrosive oil , packed in carton box
Delivery Time:	15-20 work days
Payment Terms:	T/T,D/A,D/P,Western Union
Supply Ability:	800 pcs/week

Contact Now Chat Now

Steel Core Cavity Mold ProE Mold Design Software And LKM Mold Base

Description

Product Name:	Optical Mold	Tolerance:	+/-0.005mm
Application:	Die Casting Mould	Hardness:	43-47 HRC
Feature:	Durable	Processing Method:	Electroforming Processing
Highlight:	Precision Core Pins, Core Pin Die Casting	Material:	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts
Material:	Nickel	Heat Resistance:	High
Corrosion Resistance:	Excellent	Mold Life:	Long
Conductivity:	High	Shape:	Customized
Application:	Electroforming Process	Durability:	High
Surface Finish:	Polished	Tolerance:	+/-0.001mm
Thickness:	Depends On Design
Highlight:	Core Cavity ProE Mold , LKM Mold Base Cavity Mold , Steel Core Cavity Mold

ProE Mold Design Software And LKM Mold Base Used In Aore Cavity Mold Made Of Steel Material

Product Specifications

Attribute	Value
Product Name	Optical Mold
Tolerance	+/-0.005mm
Application	Die Casting Mould
Hardness	43-47 HRC
Feature	Durable
Processing Method	Electroforming Processing
Highlight	Precision core pins, core pin die casting
Material	Automotive, Motorcycle, Instrument, Daily Necessities, Crafts

ProE Mold Design Software & LKM Mold Base: Applied in Steel Core Cavity Molds

Combining advanced design technology with industry-trusted components, our steel core cavity molds leverage ProE (Creo) mold design software for precision engineering and LKM standard mold bases for reliability—delivering high-performance, durable solutions for complex injection molding applications. Engineered for accuracy, consistency, and scalability, these molds integrate cutting-edge design tools with robust steel construction, making them ideal for industries requiring tight tolerances and long-term production stability, from automotive to consumer electronics.

Core Specifications at a Glance

Key Feature	Technical Specifications	Performance Impact
Design Software	ProE (Creo) Mold Design Module	Enables parametric 3D modeling; ensures precise core-cavity alignment and DFM optimization
Mold Base	LKM standard mold base (e.g., HASCO/DME compatible)	Guarantees interchangeability; reduces assembly errors and lead times
Mold Material	Steel (S136, 718H, H13—customizable by application)	Provides wear resistance; supports ≥500,000 cycles for high-volume production
Core Cavity Precision	Dimensional tolerance: ±0.003-0.005mm; Coaxiality: ≤0.002mm	Ensures tight part fits; minimizes post-molding adjustments
Compatibility	Suitable for thermoplastics (ABS, PC, PP) and engineering resins (PA66, PBT)	Versatile for diverse material molding needs

Core Advantages: Precision, Reliability & Durability

1. ProE (Creo) Mold Design: Engineering Excellence for Core Cavity Accuracy

ProE's advanced design capabilities lay the foundation for flawless core cavity performance:

Parametric 3D Modeling: Enables precise digital prototyping of core and cavity geometries, with real-time validation of draft angles, undercuts, and wall thicknesses. This reduces design errors by 40% compared to traditional 2D methods.
DFM (Design for Manufacturability) Integration: Built-in tools analyze mold flow, cooling channel efficiency, and ejection system performance, optimizing core-cavity alignment to prevent warpage or uneven filling.
Data Compatibility: Seamless integration with CAM systems streamlines CNC machining of steel cores and cavities, translating design intent into micron-level precision.

2. LKM Mold Base: Industry-Trusted Reliability for Stable Production

LKM standard mold bases enhance structural integrity and production consistency:

Standardized Precision: LKM bases feature pre-machined guide pillars, bushings, and plate alignments, ensuring core and cavity maintain ±0.002mm coaxiality even after 500,000+ cycles.
Material & Finish Quality: Constructed from high-grade S50C/S55C steel, LKM bases resist deformation under high injection pressures (up to 2000 bar).
Cost & Lead Time Efficiency: Standardized components reduce custom machining needs, cutting mold base lead times by 30% and lowering tooling costs.

3. Steel Core Cavity Construction: Durability for High-Volume Demands

Steel molds deliver long-term performance for rigorous production environments:

Material Versatility: Choose from corrosion-resistant S136, pre-hardened 718H, or heat-treated H13—each steel grade matched to your material and cycle count needs.
Wear Resistance: Hardened to 45-55 HRC, steel cores and cavities withstand abrasive resins without degradation, maintaining dimensional accuracy over ≥500,000 cycles.
Thermal Stability: Steel's high thermal conductivity, paired with ProE-designed cooling channels, ensures uniform heat dissipation, reducing cycle times by 15-20%.

Application Scenarios by Industry

Industry	Key Applications	Value Delivered
Automotive	Multi-cavity connector molds, interior trim molds	LKM base stability + ProE precision for tight tolerances
Consumer Electronics	Smartphone housing molds, charger enclosure molds	Steel durability + design accuracy for fine features
Medical Devices	Diagnostic equipment part molds	S136 steel corrosion resistance + cleanroom compatibility
Industrial Machinery	Structural component molds, gear molds	H13 steel wear resistance for high-filler resins

Technical Support & Quality Assurance

Design Collaboration: Our engineers use ProE to collaborate on core cavity design, providing 24-hour DFM feedback to optimize part geometry.
Mold Validation: Each mold undergoes 3D scanning (±0.001mm accuracy) and trial runs with production-grade materials.
Certifications: Compliant with ISO 9001, with full traceability for materials and design files.

By combining ProE's precision design capabilities with LKM's reliable mold bases and high-quality steel core cavities, our molds deliver the accuracy, durability, and consistency needed for high-performance injection molding—ensuring your production runs smoothly, from prototype to mass production.
