Auto Lamp Mold - Chemical & Heat Resistant Optical Molds
| Attribute |
Value |
| Product Name |
Auto Lamp Mold |
| Highlight |
High-Precision Uniform Textures |
| Tolerance |
±0.005mm |
| Hardness |
43-47 HRC |
| Feature |
Durable |
| Processing Method |
Electroforming Processing |
| Material |
Stainless steel, brass, aluminum, tin, and other metal alloys |
| Application |
Automotive, Motorcycle, Instrument, Daily Necessities, Crafts |

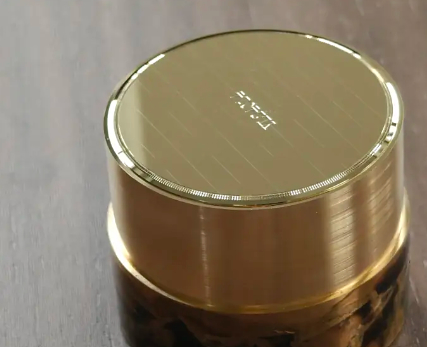

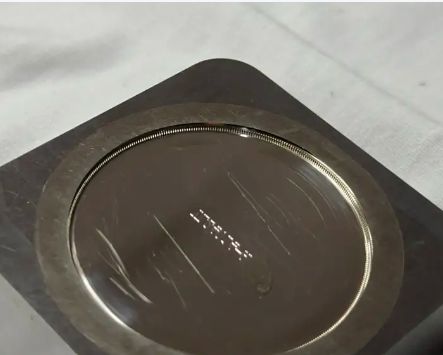

Product Overview
Engineered to thrive in the harshest optical manufacturing environments, our chemical and heat resistant optical molds deliver unbeatable performance for the optical industry—combining extreme durability with micron-level precision to produce high-clarity optical components.
Designed to withstand aggressive chemicals, high temperatures, and rigorous production cycles, these molds ensure consistent replication of intricate optical features (lenses, prisms, light guides) even in demanding applications, making them indispensable for medical, automotive, and industrial optics.
Core Specifications
| Key Feature |
Technical Specifications |
Performance Impact |
| Heat Resistance |
Sustains continuous operation at 200-300°C; thermal cycling stability (-40°C to 300°C) |
Compatible with high-temperature optical resins (PEEK, COC, LCP); prevents thermal warpage |
| Chemical Resistance |
Resists acids (pH 2-12), solvents (ethanol), and cleaning agents |
Withstands harsh cleaning/sterilization; ideal for medical and industrial optics |
| Optical Precision |
Dimensional tolerance: ±0.001-0.003mm; Surface roughness: Ra ≤0.003μm |
Ensures minimal light scattering; preserves optical clarity and performance |
| Mold Material |
Heat-treated H13 steel, S136 (chrome-plated), or nickel-alloy electroformed molds |
Delivers wear resistance (≥1,500,000 cycles) and corrosion protection |
| Optical Compatibility |
Supports PMMA, PC, COC, PEEK, and glass-filled optical resins |
Versatile for diverse optical applications requiring heat/chemical resilience |
Core Advantages
1. Extreme Heat Resistance: Stable Under High-Temperature Molding
Our molds excel in high-heat conditions, critical for processing heat-resistant optical resins:
- Temperature Tolerance: Operate continuously at 200-300°C, withstanding the high melt temperatures of advanced optical materials like PEEK (340-390°C), COC (270-300°C), and LCP (300-350°C).
- Thermal Cycling Stability: Designed to endure rapid temperature shifts (-40°C to 300°C), making them ideal for automotive optics and industrial photonics.
- Cooling Efficiency: Precision-machined cooling channels maintain uniform temperatures across the mold surface, reducing cycle times by 15-20%.
2. Superior Chemical Resistance: Withstands Aggressive Substances
Molds resist harsh chemicals, ensuring longevity in demanding cleaning and production environments:
- Broad Chemical Compatibility: Withstand acids (pH 2-12), solvents (ethanol, isopropyl alcohol), and industrial cleaning agents.
- Corrosion Protection: Chrome-plated S136 steel or nickel-alloy electroformed surfaces resist pitting and degradation.
- Easy Maintenance: Non-porous, chemical-resistant surfaces simplify cleaning, reducing downtime.
3. Uncompromising Optical Precision: Clarity & Consistency
Even in harsh conditions, these molds maintain the precision required for high-performance optics:
- Micron-Level Accuracy: Achieve ±0.001-0.003mm dimensional tolerance and Ra ≤0.003μm surface roughness.
- Feature Replication: Replicate micro-optical details (5μm anti-reflective textures, 10μm light-diffusing patterns) with 99.95% fidelity.
- Low Birefringence: Mold design minimizes resin stress during cooling, keeping birefringence ≤10nm/cm.
4. Durability for Unbeatable Longevity
Built to outlast standard optical molds, delivering sustained performance over extreme cycles:
- Wear Resistance: Heat-treated H13 steel (50-55 HRC) or nickel-alloy electroforms withstand abrasive fillers.
- Impact Resistance: Robust construction resists mechanical stress from high injection pressures (up to 2500 bar).
Application Scenarios
| Industry Segment |
Key Applications |
Value Delivered |
| Medical Optics |
Sterilizable endoscope lenses, surgical microscope optics |
Chemical resistance (sterilization) + heat stability + biocompatibility |
| Automotive Optics |
High-temperature headlight lenses, LiDAR components |
Withstands engine heat + UV exposure + chemical resistance |
| Industrial Photonics |
Laser collimators, sensor optics |
Resists coolants/solvents + thermal stability for 24/7 operation |
| Consumer Optics |
High-performance camera lenses, ruggedized display optics |
Durability + precision for premium, long-lasting products |
Customization & Technical Expertise
- Material Matching: Select mold materials based on your resin requirements.
- Design Collaboration: Our engineers optimize mold geometry for your optical design.
- Validation Testing: Pre-production trials under extreme conditions verify performance.
Quality & Service Commitment
- Rigorous Inspection: Each mold undergoes 3D optical scanning (0.001μm resolution).
- Certifications: Compliant with ISO 9001, with full traceability for materials.
- Lifecycle Support: Dedicated engineers provide maintenance guidelines.
For optical molds that must perform flawlessly under heat, chemicals, and high-volume production, our solutions deliver unbeatable durability, precision, and reliability—ensuring your optical components meet the strictest performance standards, even in the harshest conditions.
