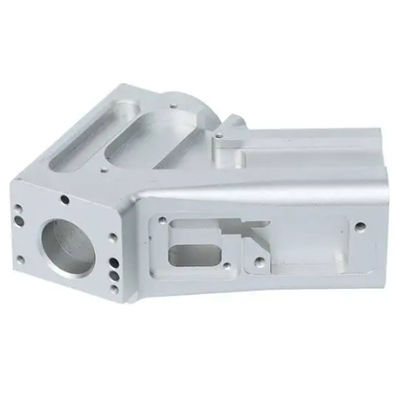

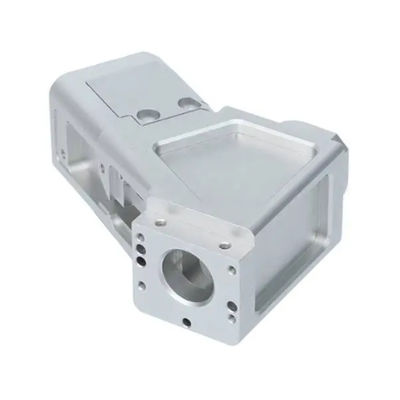

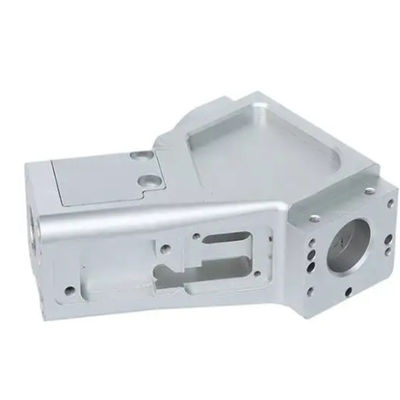

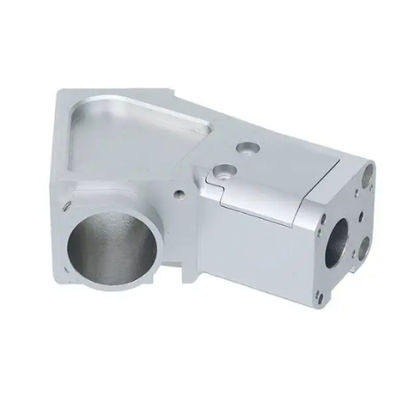

High Precision Drone Accessories | Multi-Axis CNC Machining Services for Shape-Modeled CNC Parts

Product Specifications

Multi-Axis CNC Machining for High Precision Drone Accessories

Core Service/Drone Accessory Parameters Comparison

Key Advantages: Drone-Specific Multi-Axis Machining

1. Shape-Modeled Part Expertise for Aerodynamics

• Curved/Aerodynamic Shapes: Machines complex curves (e.g., fixed-wing drone wing spars) and hollow structures (e.g., lightweight frame tubes) with ±0.003mm accuracy—ensuring airflow efficiency and reducing drag by 15% vs. poorly shaped parts.
• Hollow & Thin-Walled Designs: Creates drone parts with wall thickness as thin as 0.5mm (aluminum 6061) using adaptive cutting technology, balancing lightweight needs (critical for flight time) with structural strength (resists crashes).
• Custom Shape Optimization: Collaborates with drone designers to refine shape models—e.g., adding fillets to frame brackets to reduce stress concentration, or optimizing propeller hub geometry to minimize vibration.

2. Drone-Specific Precision for Flight Stability

• Motor Mount Concentricity: Achieves ≤0.002mm concentricity for motor mounts, ensuring propellers spin evenly and reducing vibration (≤0.1g). This prevents camera blur in photography drones and extends motor lifespan by 50%.
• GPS Module Housing Precision: Machines GPS housing mounting holes with ±0.005mm alignment, ensuring the module stays level—critical for accurate positioning (error ≤1m) in industrial inspection or delivery drones.
• Landing Gear Alignment: Uses 4-axis machining to align landing gear brackets with ±0.005mm tolerance, preventing drone tipping during takeoff/landing.

3. Lightweight & Durable Material Selection

• Aluminum 6061: Ideal for frame brackets and propeller hubs—lightweight (2.7g/cm³) yet strong (tensile strength: 276MPa), with anodization for corrosion resistance (critical for outdoor drones).
• Titanium Grade 2: Used for high-stress parts (e.g., camera gimbal mounts)—30% lighter than steel, with excellent fatigue resistance (survives 10,000+ flight cycles).
• Carbon Fiber-Reinforced PA66: For mini-drone parts—ultra-lightweight (1.3g/cm³) and impact-resistant, perfect for consumer drones where weight <500g is required.

Application Scenarios by Drone Type

Our Drone Accessory Machining Process

1. Design Collaboration: Receive your drone part 3D models (STEP/IGES files), provide 24-hour DFM analysis—e.g., optimizing a frame bracket’s wall thickness from 0.4mm to 0.5mm for manufacturability, or recommending material swaps (aluminum vs. titanium) to meet weight targets.
2. Sample Production: Manufacture custom drone part samples in 5–8 days, using the same material and surface treatment as bulk production. Test samples for fit (e.g., motor mount-to-frame compatibility) and function (e.g., vibration testing).
3. Iteration & Validation: Refine samples based on feedback—e.g., adjusting a propeller hub’s inner diameter by 0.01mm for better motor fit, or changing surface finish from anodization to sandblasting for grip.
4. Bulk Production: Launch mass production with multi-axis CNC cells, conducting 100% visual inspection and 20% dimensional sampling (via Zeiss CMM, ±0.0005mm accuracy) to ensure consistency.

Quality Assurance for Drone Accessories

• Precision Testing: Use CMM for dimensional checks, vibration testers (10–2000Hz) for motor mount stability, and weight scales (±0.01g accuracy) to verify lightweight targets.
• Environmental Testing: For outdoor drones, conduct IP67 water/dust resistance testing (30-minute submersion) and temperature cycling (-20℃ to 60℃) to ensure durability.
• Compliance: Meet ISO 9001 quality standard.
